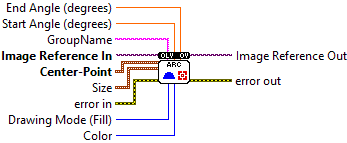

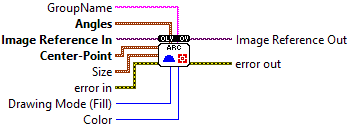

OpenLvVision_Overlays.lvlib:OverlayArcCenterSize.vi

Overlay a arc on top of an image.

Draws the arc arround a center point.

OpenLvVision_Overlays.lvlib:OverlayArcCenterSize.vi

cerrcodeclst

error in

error in can accept error information wired from VIs previously called. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

    cbool

    		status

    status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred.

    Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

    ci32

    		code

    cstr

    		source

    source describes the origin of the error or warning.

    Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

cudtagrefflat

Image Reference In

An Image reference is a handle to the actual image data in memory. It's important to note that you are responsible for manually releasing (deallocating) the memory associated with this image reference when it's no longer needed to prevent memory leaks.

cstr

GroupName

Name of the overlay group you want to add to.

cu32

Color

Color of the overlay.

cenum

Drawing Mode (Fill)

Drawing Mode specifies whether to draw only the frame or fill in.

cdbl

Start Angle (degrees)

The starting angle for the arc.

cdbl

End Angle (degrees)

The end angle for the arc.

cnclst

Center-Point

Center point of the arc

    ci32

    		X

    ci32

    		Y

cnclst

Size

Size of the arc

    ci32

    		X

    ci32

    		Y

ierrcodeclst

error out

error in can accept error information wired from VIs previously called. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

    ibool

    		status

    status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred.

    Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

    ii32

    		code

    istr

    		source

    source describes the origin of the error or warning.

    Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

iudtagrefflat

Image Reference Out

An Image reference is a handle to the actual image data in memory. It's important to note that you are responsible for manually releasing (deallocating) the memory associated with this image reference when it's no longer needed to prevent memory leaks.
